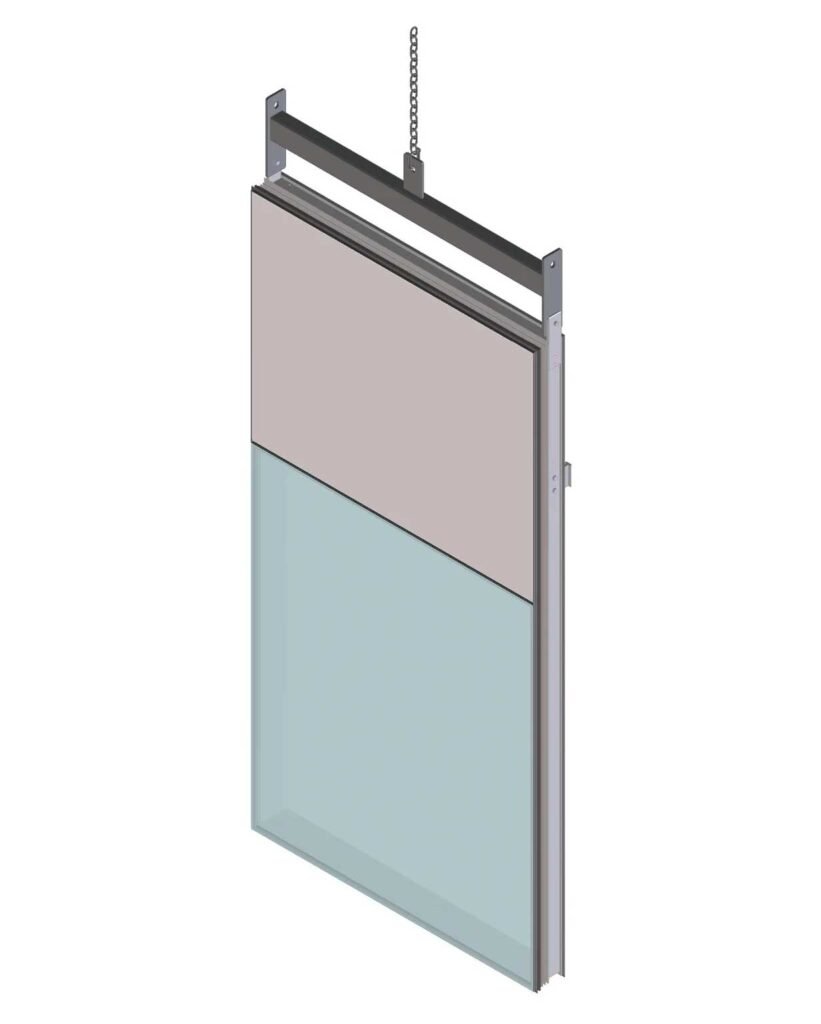

Unitised Curtain Wall system
Nowadays, construction requires faster lead times and the risk of failures must be reduced to a minimum. The logistical challenges are huge as traffic requires an optimum just-in-time principle. When installation can be done by a minimum number of people and without the use of complicated scaffolding and expensive cranes then the advantages are there!
On average, a team will be able to install about 300 m2 per shift, that makes the EFP 65 Unitised System the perfect solution!
Various external features like cover caps, integrated canopies, solar panels or stone panel solutions are available for the system. Concealed windows can be fully integrated to create possibilities of natural ventilation without the aspect of window bars.
Resume
- Factory made units gives optimum quality
- Short installation time with minimum site staff
- 3 barrier, drained and pressure equalised
- Thermally insulated
- Continuous horizontal centre seal so hardly any use of sealant required on site
- Tested and certified
- Custom made (bespoke) solutions
| Glass Thickness | 24mm up to 68mm; glazing according BS 6262 |
|---|---|
| Drainage | mullion drained and pressure equalised as specified in BS 6262 |
| Thermal Insulation | class 2.1 in accordance with EN ISO 10077-1 |
| Sound Isolation | depending largely upon the glass spec, the frame reduces the figure about 2dB(A) |
| Wind Resistance | -2400 Pa design- 3300 Pa safety – according ASTM E 330 |
| Water Tightness | up to 1200 Pa cyclic pressure (AS/NZS 4284) and static according ASTM E 331 |
| Air Infiltration | according ASTM E 283 |
